نظام إدارة المخبز

نظام إدارة المخبز هو نظام متطور لإدارة الأعمال يعتمد على السحابة، ومصمم خصيصًا لمؤسسات إنتاج السمبوسة الصغيرة إلى المتوسطة. تجمع هذه المنصة المتقدمة بين التحليلات في الوقت الفعلي، وبنية تعمل دون اتصال أولًا، ودعم متعدد اللغات، ومزامنة سحابية بمستوى المؤسسات، لتقديم تجربة تشغيل سلسة. صُمّم مع مراعاة مرونة روّاد الأعمال وقابلية التوسع، حيث يُمكّن مجموعة نجاح السمبوسة أصحاب الأعمال الغذائية من تحسين سير عمل الإنتاج، وزيادة الربحية، وتوسيع العمليات بثق

مجموعة التقنيات :
نظام إدارة المخبز

Samosa Success Suite - Complete User & Developer Guide

📸 Screenshots

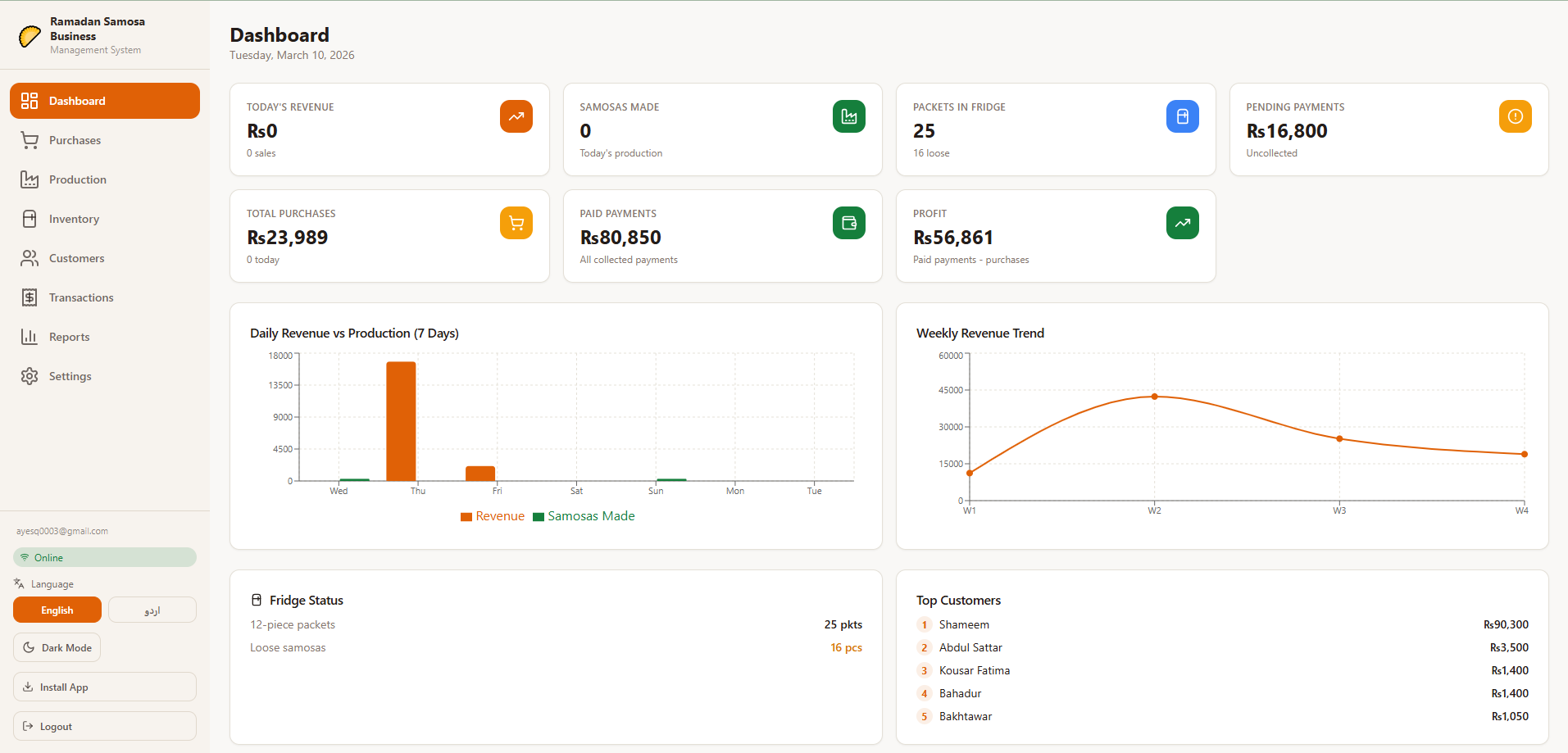

Dashboard Overview

Dashboard

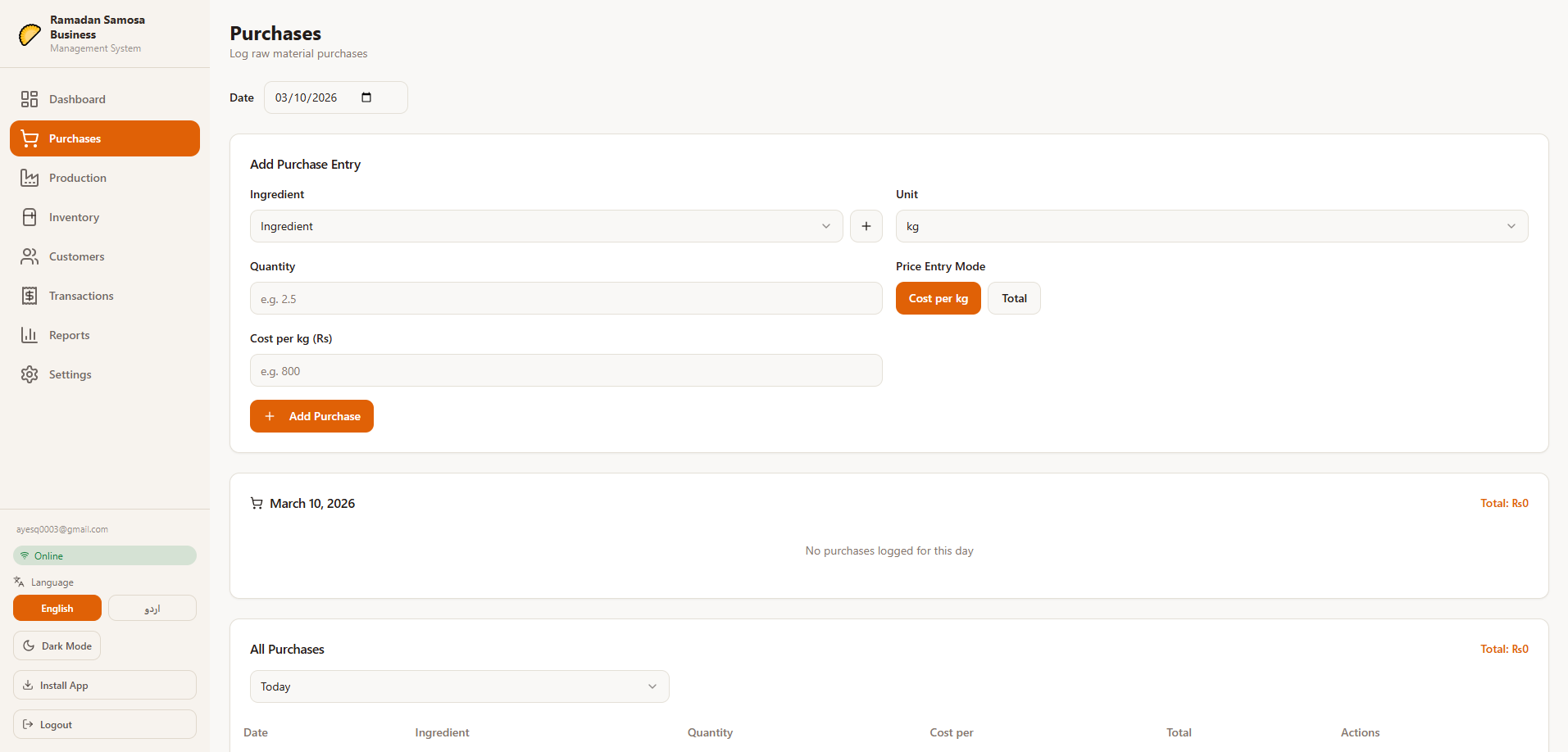

Purchase Module

Purchase

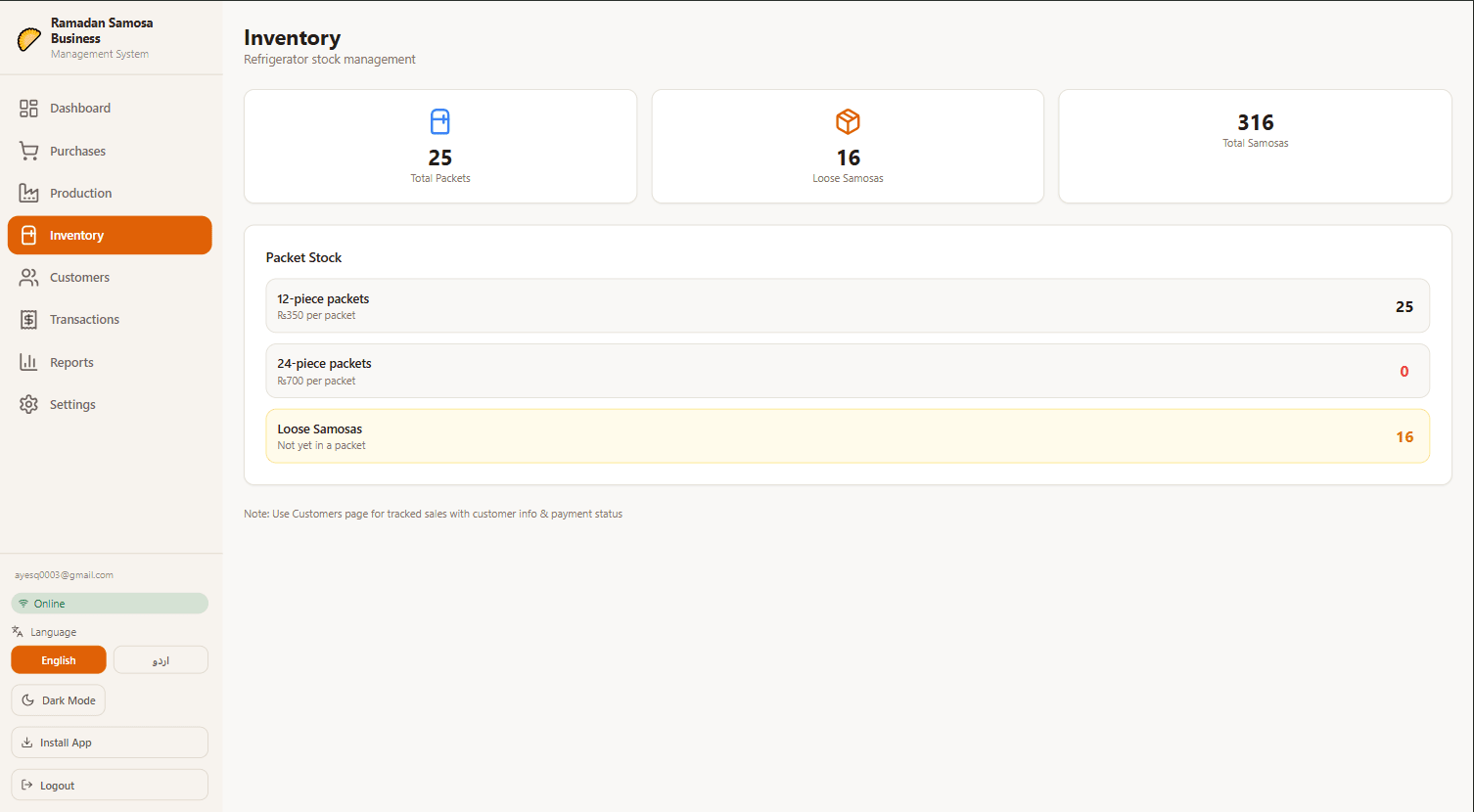

Inventory Management

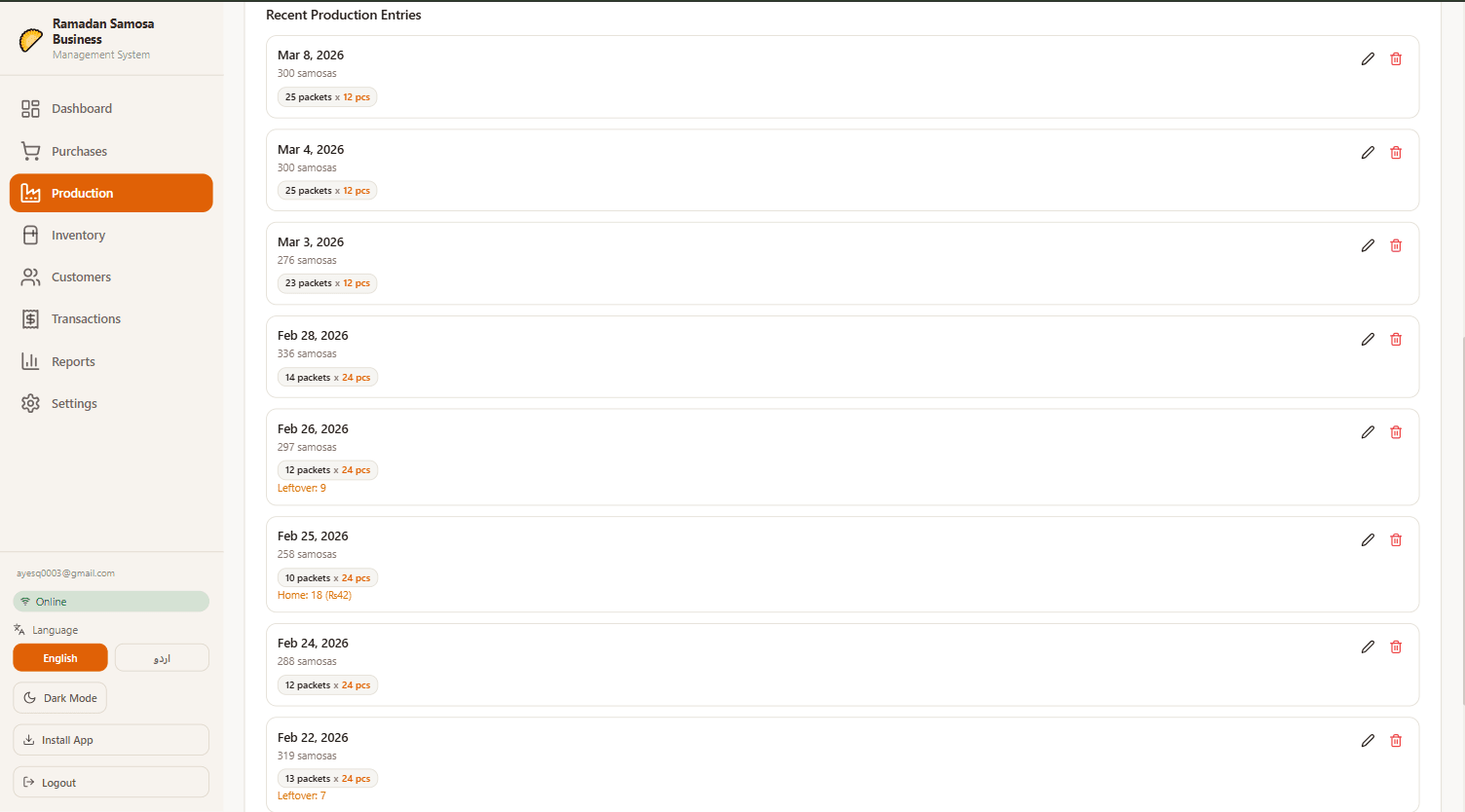

Production

Financial Reports

Inventory Profit & Loss analysis and ledger tracking

User Management

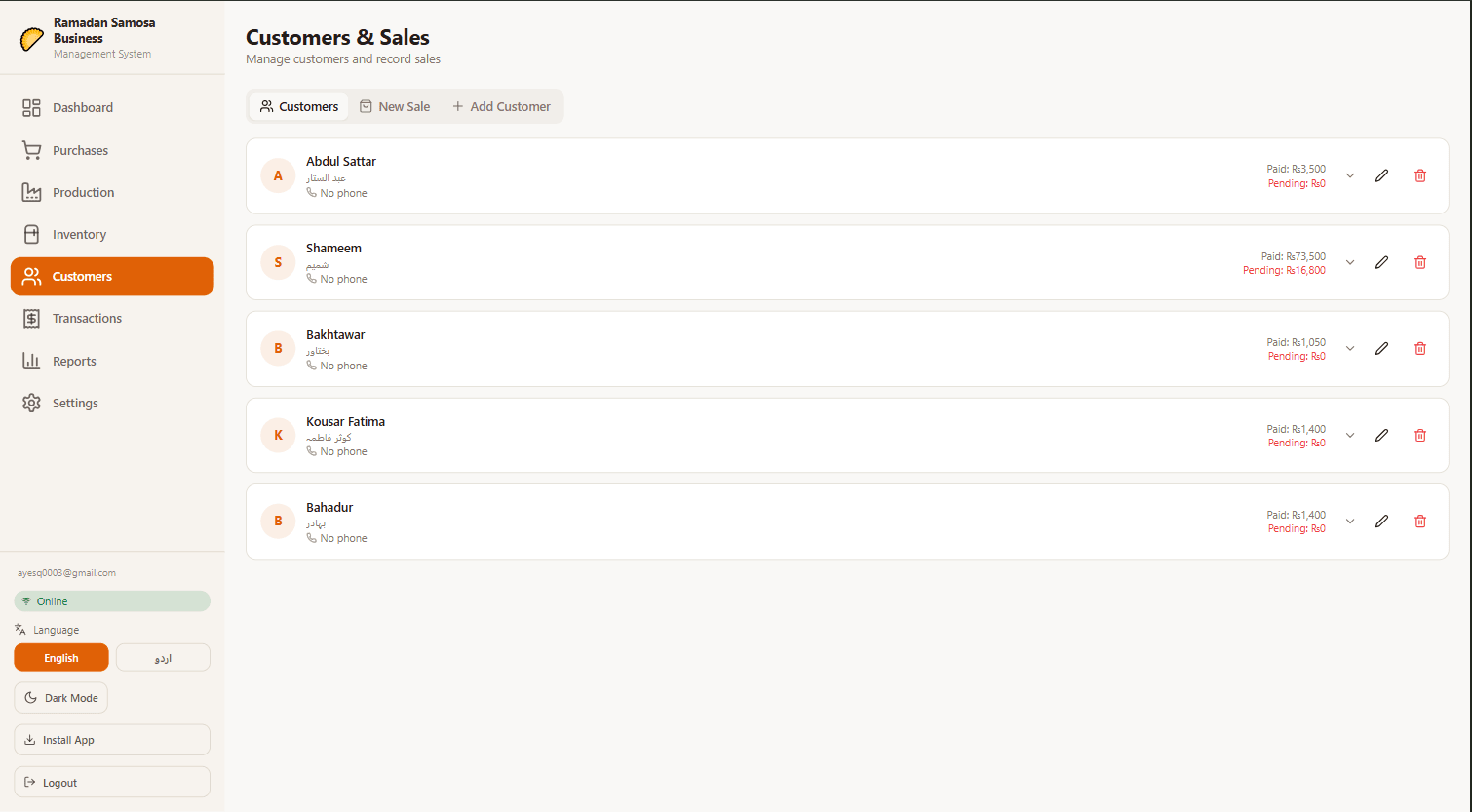

Customers

Quotation Generator

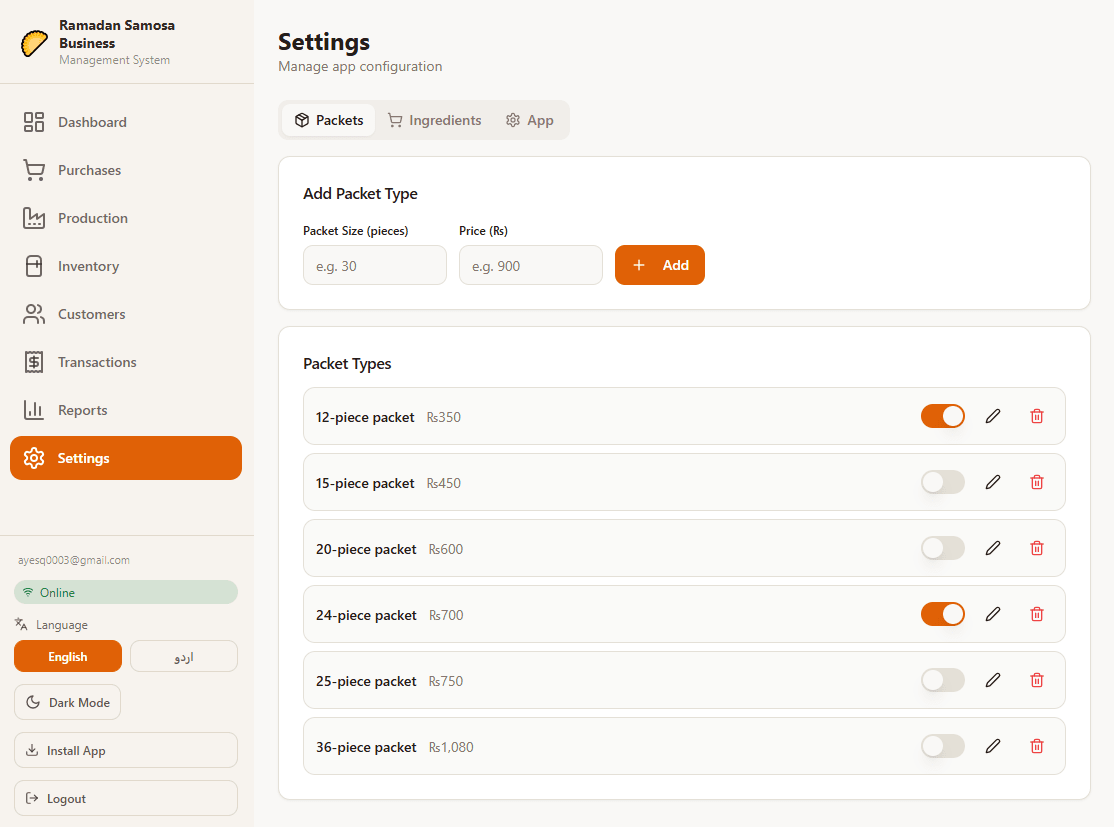

Settings

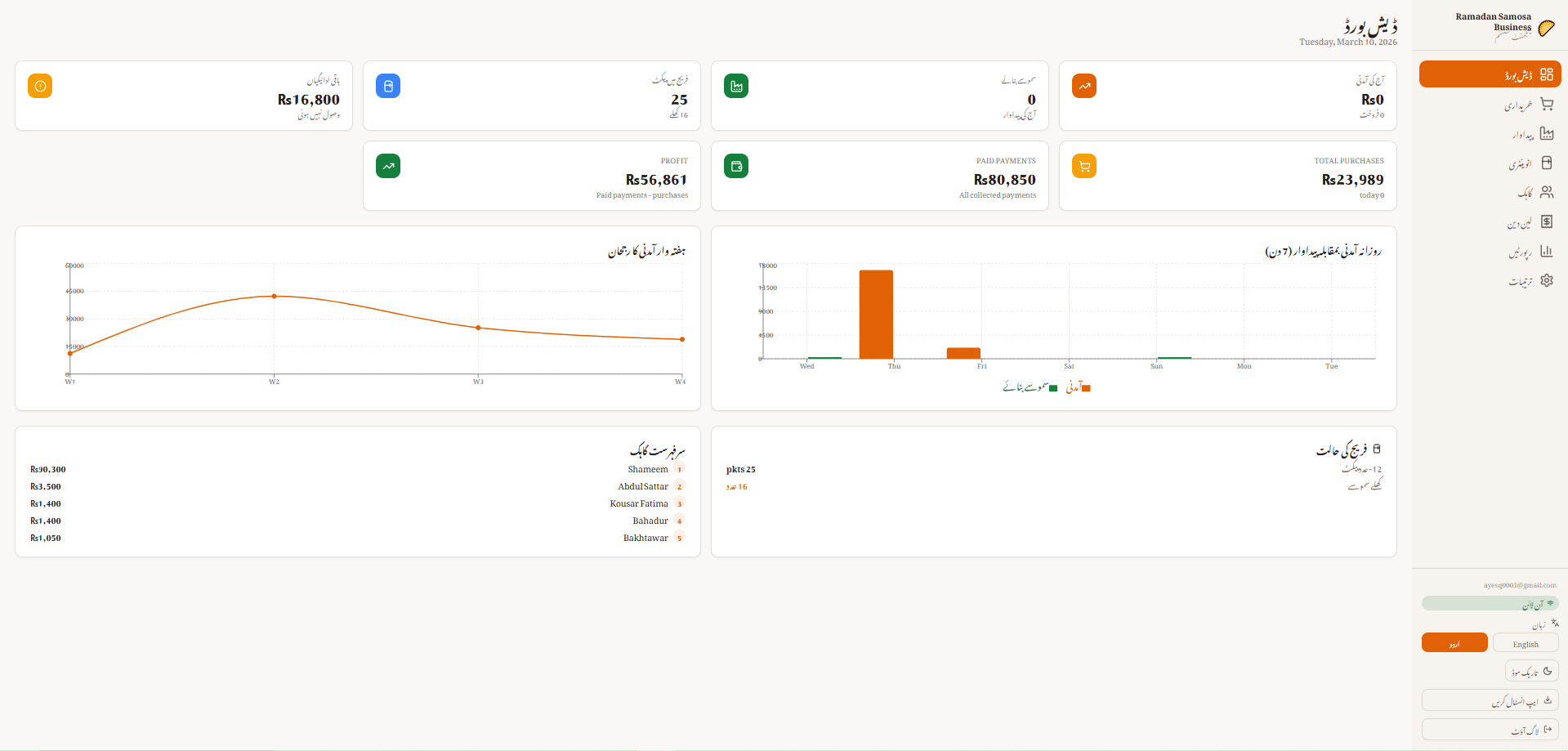

Urdu Language Support

Settings

Quick Start Guide

For End Users

Installation

  1. Web Access: Visit the application URL directly in any modern browser
  2. Mobile Install:
    • Open the app in mobile browser
    • Tap "Share" → "Add to Home Screen" (iOS) or "Install" prompt (Android)
    • Access like a native app

First-Time Setup

  1. Create Account: Sign up with email and password
  2. Configure Business Name: Go to Settings → set your business name
  3. Set Currency: Choose your preferred currency (default: PKR)
  4. Select Theme: Choose Light, Dark, or Auto mode
  5. Add Packet Types: Create samosa packet sizes (e.g., 5, 10, 20, 50 pieces)

Daily Operation Flow

Application Architecture

High-Level System Design

Component Architecture

Core Features & Workflows

1. Dashboard - Business Overview

Purpose: Real-time operational metrics and business performance
Key Metrics Displayed:
  • Today's Revenue (sum of all paid sales)
  • Total Samosas Produced (daily batch)
  • Pending Payments (unpaid customer credits)
  • Inventory Status (packets and loose samosas)
Data Sources:
  • Sales table (today's transactions)
  • Production entries (today's batches)
  • Inventory table (current stock)
Workflow:

2. Purchase Management - Supply Chain

Purpose: Track ingredient purchases and calculate production costs
Data Captured:
Pricing Models:
  • Per-Unit Model: Enter qty + cost per unit → auto-calc total
  • Total-Only Model: Enter qty + total cost → calc cost per unit
Workflow:
Key Features:
  • Ingredient master database with auto-suggestions
  • Bilingual ingredient names (English + Urdu)
  • Bulk edit and delete with confirmation
  • Date range filtering for historical analysis
  • Pagination (10 items per page)

3. Production Planning - Batch Management

Purpose: Log samosa production and allocate costs
Data Captured:
Cost Calculation Logic:
Workflow:

4. Inventory Management - Stock Control

Purpose: Track available samosa packets and loose samosas
Data Structure:
Automatic Updates:
  • Production adds to inventory
  • Sales deduct from inventory
  • Corrections for manual adjustments
Workflow:

5. Customer Management - Relationship Building

Purpose: Track customers and manage customer credits
Data Captured:
Customer Types:
  1. Registered Customers: In customer database
  2. Walk-In Customers: Single transaction, not stored
Workflow:

6. Transaction Management - Sales Execution

Purpose: Record sales, manage payments, and track revenue
Data Captured:
Pricing Flexibility:
  • Default packet prices from settings
  • Manual override for promotional pricing
  • Customer-specific discounts
Workflow:
Payment Tracking:
  • Record partial payments
  • Track pending amounts
  • Mark as paid when complete
  • Record payment dates

7. Reporting & Analytics - Business Intelligence

Purpose: Analyze business performance and trends
Available Reports:
  1. Revenue Trends: 7-day or custom date range
  2. Production Efficiency: Cost per samosa trends
  3. Customer Analysis: Payment status, credit exposure
  4. Inventory Reports: Stock levels, turnover
  5. Cost Analysis: Ingredient costs vs. revenue
Filtering Options:
  • Date range selection
  • Customer filtering
  • Ingredient filtering
  • Packet type filtering
  • Payment status filtering
Chart Types:
  • Line charts (trends over time)
  • Bar charts (comparative analysis)
  • Pie charts (distribution)

8. Settings & Configuration

Configurable Options:

Technology Stack

Frontend Framework

  • React 18.3.1: Modern UI library with hooks
  • TypeScript 5.8.3: Static type checking
  • Vite 5.4.19: Lightning-fast build tool
  • React Router 6.30.1: Client-side routing

UI Component Library

  • shadcn-ui: Accessible React components
  • Radix UI: Unstyled UI primitives
  • Tailwind CSS 3.4.17: Utility-first CSS
  • Lucide React 0.462: Icon library (462+ icons)

State Management

  • React Context API: Global state (Auth, App data, Language)
  • TanStack React Query 5.83: Server state management
  • localStorage API: Client-side data persistence

Form & Validation

  • React Hook Form 7.61: Performant form handling
  • @hookform/resolvers 3.10: Schema validation adapters
  • Zod 3.25.76: TypeScript-first schema validation

Backend Services

  • Supabase 2.97: PostgreSQL + Auth + Real-time
  • Supabase Auth: JWT-based authentication
  • Supabase PostgreSQL: Cloud database

Data Visualization

  • Recharts 2.15.4: Composable React charts
    • Bar charts (production, revenue)
    • Line charts (trends, analytics)
    • Real-time data binding

PWA & Offline

  • Vite Plugin PWA 1.2: PWA configuration
  • Workbox: Service worker & caching
  • Manifest.json: PWA metadata

Additional Libraries

  • date-fns 3.6: Date manipulation & formatting
  • clsx 2.1.1: Conditional CSS classes
  • class-variance-authority 0.7.1: CSS variant system
  • tailwind-merge 2.6: Tailwind class merging
  • next-themes 0.3: Dark mode implementation
  • Sonner 1.7.4: Toast notifications
  • react-resizable-panels 2.1.9: Resizable UI panels
  • embla-carousel-react 8.6: Carousel component
  • cmdk 1.1.1: Command palette
  • vaul 0.9.9: Drawer component

Development Tools

  • ESLint 9.32: Code quality
  • Vitest 3.2.4: Unit testing
  • JSDOM 20.0.3: DOM testing environment
  • Testing Library: Component testing utilities

Build & Deployment

  • Vite Build: Production bundling
  • Lovable (optional): AI-powered development platform

Data Models & Flow

TypeScript Interfaces

Data Flow Diagram

Cloud Synchronization

Sync Architecture

Offline-First Strategy:
  1. All operations immediately save to localStorage
  2. UI updates instantly (optimistic updates)
  3. Sync happens in background when online
  4. Conflict resolution uses timestamp-based logic

Sync Process

Conflict Resolution Logic

Sync Status States

Environment Configuration

Development Setup

Prerequisites

  • Node.js 18.x or higher
  • npm or yarn package manager
  • Git for version control
  • Supabase account (optional, for cloud sync)

Installation Steps

Build for Production

Testing

Code Quality

Configuration Guide

Supabase Setup

1. Create Supabase Project

  • Visit supabase.com
  • Create new project
  • Copy Project URL and Anon Key

2. Create Database Table

3. Configure Environment

4. Enable Authentication

  • Enable Email/Password provider
  • Configure email verification (optional)
  • Set redirect URLs for deployment

Tailwind CSS Customization

Edit
:

Theme Configuration

Dark/Light theme is managed by
:

i18n Language Support

Current support: English, Urdu Edit
to add languages

Troubleshooting

Sync Issues

Problem: Data not syncing to cloud
Problem: Conflicting changes between devices

Authentication Issues

Problem: Cannot login
Problem: Session expires

Performance Issues

Problem: Slow sync or app freeze
Problem: High memory usage

Data Issues

Problem: Missing data after offline period
Problem: Duplicate entries

API & Integrations

Data Store Functions

Supabase Integration

Export Capabilities (Future)

Potential export formats:
  • CSV (for accounting software)
  • JSON (for backup)
  • PDF (for reports)
  • Excel (for analysis)

Best Practices

For Users

✅ Save frequently (app auto-saves) ✅ Keep phone charged for offline operation ✅ Sync when online for cloud backup ✅ Use customer names for credit tracking ✅ Review daily reports for insights ✅ Back up your data regularly

For Developers

✅ Type all data with TypeScript ✅ Use React hooks for side effects ✅ Keep components small (<300 lines) ✅ Use context for global state ✅ Add error boundaries ✅ Test critical flows ✅ Document complex logic ✅ Use semantic HTML ✅ Follow Tailwind conventions ✅ Optimize images and assets

Security

✅ Never log sensitive data ✅ Use HTTPS only ✅ Validate all user input ✅ Implement RLS at database level ✅ Use JWT for authentication ✅ Regular security audits ✅ Keep dependencies updated ✅ Never commit credentials

Support & Resources

Documentation Links

Community

  • GitHub Issues: Report bugs and feature requests
  • Discussions: Ask questions and share ideas
  • Wiki: Community-contributed guides

Getting Help

  1. Check this guide first
  2. Search GitHub issues
  3. Check browser console for errors
  4. Try clearing cache/localStorage
  5. Create detailed bug report with steps to reproduce
Version: 1.0.0 Last Updated: April 2026 Made by: Muhammad Hussain
